Which chiller type is right for my commercial building anyway

Choosing Between Air and Water Cooled Chillers for Your Building: What Virginia Facility Managers Need to Know

Choosing between air and water cooled chillers for your building is one of the most consequential decisions you'll make for your facility's long-term efficiency and reliability. Get it right, and you'll have decades of dependable cooling. Get it wrong, and you're looking at unnecessary energy waste or a system that simply can't keep up with demand.

Here's a quick-reference guide to help you decide:

Factor	Air-Cooled Chiller	Water-Cooled Chiller
Best for	Small to medium facilities	Large commercial and industrial facilities
Cooling capacity	20 to 600 RT (70-2,100 kW)	200 to 3,000+ RT (700-10,500 kW)
Installation complexity	Lower - no cooling tower needed	Higher - requires cooling tower, pumps, and piping
Energy efficiency	Moderate - affected by ambient temperature	Higher - more stable across all conditions
Lifespan	15-20 years	20-30 years
Water consumption	None	Significant - requires makeup water
Maintenance	Simpler	More involved - water treatment required
Ideal climate	Moderate; avoid extreme heat	Works well in most climates

The core trade-off comes down to this: air-cooled chillers are simpler to install and require no water — but water-cooled chillers are more efficient, last longer, and handle larger loads with greater stability.

For Virginia facility managers dealing with hot, humid summers, that efficiency gap is real and measurable. A comparable water-cooled model can achieve an IPLV (Integrated Part Load Value) of 10.45 versus 5.07 for an equivalent air-cooled unit — more than double the part-load efficiency.

Neither system is universally better. The right choice depends on your building's cooling load, available space, water access, noise constraints, and how long you plan to operate the system. This guide walks you through each of those factors so you can make a confident, well-informed decision.

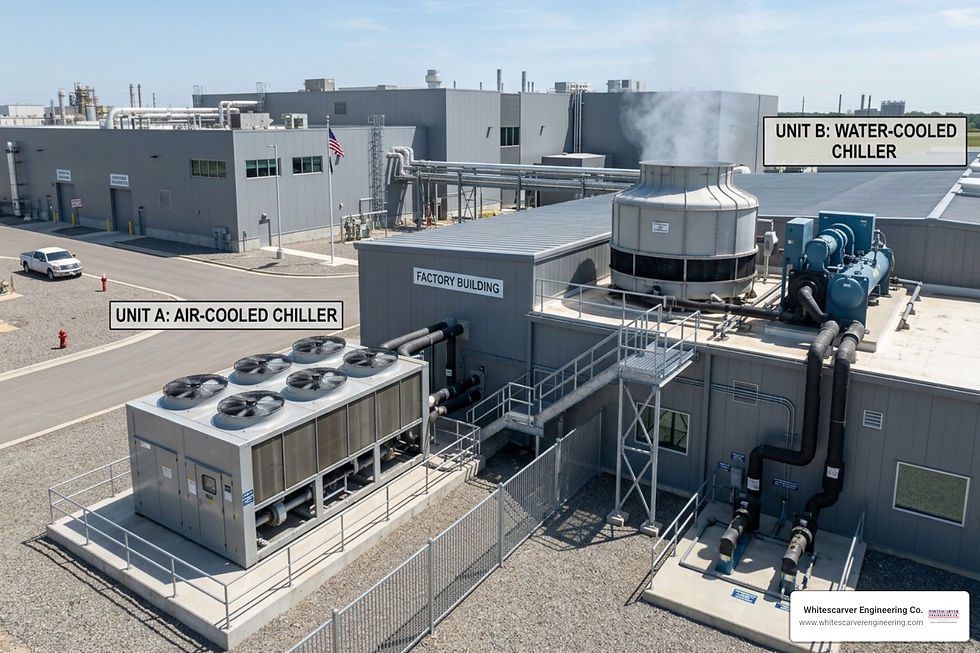

Understanding the Mechanics: Air vs. Water Heat Rejection

To make an informed choice, we first need to look at how these machines actually move heat. At their core, all chillers use a refrigeration cycle—consisting of a compressor, an evaporator, an expansion valve, and a condenser—to remove heat from a liquid (usually water or a glycol mix).

This chilled liquid is then pumped throughout your building to provide cooling. The "air vs. water" distinction refers specifically to how the chiller rejects that gathered heat into the environment.

How Air-Cooled Chillers Work

Air-cooled chillers use ambient air to cool the refrigerant. Imagine a massive version of your home’s outdoor AC unit. These systems feature large condenser coils and powerful fans. The fans draw outside air across the coils, transferring heat from the refrigerant directly to the air.

Because they rely on the "dry-bulb" temperature (the temperature you see on a standard thermometer), their efficiency is tied directly to how hot it is outside. When Virginia hits a 95°F summer afternoon, these units have to work much harder to "push" heat into the already-hot air.

How Water-Cooled Chillers Work

Water-cooled chillers are a bit more sophisticated. Instead of using fans to blow air, they use a condenser water loop. Heat is transferred from the refrigerant to a water stream, which is then pumped to an external cooling tower. Inside the tower, a small portion of the water evaporates, which significantly cools the remaining water. This process utilizes the "wet-bulb" temperature, which is almost always lower than the dry-bulb temperature. This allows water-cooled systems to operate with much higher efficiency, especially in Commercial HVAC Systems designed for high-demand environments like hospitals or data centers.

Key Factors in Choosing Between Air and Water Cooled Chillers for Your Building

When we sit down for an Engineering Design consultation, we look at several variables that impact long-term performance. Every building in Virginia, from Roanoke to the coast, has a unique "energy fingerprint" that dictates which system will perform best.

Requirement	Air-Cooled	Water-Cooled
Indoor Space	Minimal (unit is outdoors)	High (needs mechanical room)
Outdoor Space	Significant (for the unit)	Moderate (for the tower)
Electrical Load	Higher peak draw	Lower peak draw
Water Supply	Not required	Constant supply needed

Capacity Requirements for Choosing Between Air and Water Cooled Chillers for Your Building

The size of your building is often the first "filter" in the decision process. Cooling capacity is typically measured in tons (RT) or kilowatts (kW).

• Small-to-Medium Facilities: If your building requires between 20 and 500 tons of cooling, an air-cooled chiller is often the most practical choice. These are frequently seen in mid-sized office buildings, schools, and smaller medical clinics.

• Large-Scale Operations: Once you cross the 500-ton threshold, water-cooled centrifugal chillers become the gold standard. For massive Industrial Process Systems, shopping malls, or high-rise complexes, the sheer volume of heat that needs to be moved makes water cooling the only thermodynamically sensible option. Some water-cooled plants can scale up to 4,000 tons or more.

Environmental Impact and Choosing Between Air and Water Cooled Chillers for Your Building

In today’s world, Energy Conservation and the "water-energy nexus" are top of mind for stakeholders.

• Water Scarcity: While Virginia isn't an arid desert, water availability is still a major factor. A 500-ton water-cooled chiller can consume roughly 1.5 gallons of makeup water per hour per ton to account for evaporation in the cooling tower. In areas where water is restricted or limited, air-cooled chillers—which use zero water—provide a much more sustainable profile.

• Decarbonization: Conversely, because water-cooled chillers are significantly more energy-efficient, they often have a lower carbon footprint over their lifetime. If your primary goal is reducing electricity consumption and greenhouse gas emissions, the efficiency gains of a water-cooled system are hard to beat.

Comparing Performance, Lifespan, and Site Constraints

Performance isn't just about the hottest day of the year; it's about how the system handles "part-load" conditions—those spring and fall days when you only need 40-60% of your max cooling capacity.

We look at metrics like IPLV (Integrated Part Load Value) and NPLV (Non-Standard Part Load Value). Water-cooled systems excel here because they can take advantage of lower condenser water temperatures. However, modern air-cooled chillers with variable-speed drives have narrowed this gap significantly in recent years.

Space and Installation Complexities

Where are you going to put the equipment? This is where Installation logistics often dictate the winner.

• Air-Cooled: These are almost always outdoor units, typically located on a roof or a ground-level pad. They require plenty of "breathing room"—usually 4 to 6 feet of clearance on all sides—to ensure proper airflow. Because they are "packaged" units, they are much faster to install.

• Water-Cooled: These systems are more complex. The chiller itself usually sits inside an indoor mechanical room, protected from the elements. However, you also have to find a spot for the outdoor cooling tower and run extensive piping between the two. This requires more structural support for the roof and a larger footprint for the indoor mechanical space.

Noise Levels and Operational Reliability

Noise is a major consideration, especially in urban Virginia areas with strict noise ordinances.

• Air-Cooled: These can be loud. Between the high-speed fans and the compressors, dBA ratings can reach 85-100 at the unit. If the unit is near a neighboring office or a residential zone, you may need to invest in sound blankets or barrier walls.

• Water-Cooled: Because the chiller is indoors, the external noise is limited to the cooling tower fans, which are generally quieter (often 10-20 dBA lower than air-cooled units).

• Reliability: Water-cooled chillers enjoy a longer lifespan—often 20 to 30 years—because they are housed indoors away from rain, snow, and extreme temperature swings. Air-cooled units, being exposed to the elements 24/7, typically have a shorter lifespan of 15 to 20 years and require more frequent Maintenance Services to keep the coils clean of debris.

Frequently Asked Questions about Chiller Selection

Which chiller type is better for small-to-medium office buildings?

For most small-to-medium office buildings in Virginia, air-cooled chillers are the preferred choice. Their "packaged" design means all the components are in one box, simplifying the installation process. They are also incredibly flexible for retrofits; if you’re replacing an old system in an existing building, you don't have to worry about finding space for new cooling towers or complex indoor piping.

How does climate impact the efficiency of air-cooled vs. water-cooled systems?

Climate is the biggest variable for air-cooled units. Their efficiency drops by about 5-8% for every 10°F the ambient temperature rises above 95°F. In contrast, water-cooled systems provide very stable performance even in high heat because they rely on the wet-bulb temperature, which stays relatively consistent even when the "feels like" temperature is soaring.

What are the primary maintenance differences between the two systems?

Maintenance is a vital aspect of any chiller's operation.

• Air-Cooled: The main task is keeping the condenser coils clean. Dust, pollen, and debris can clog the coils, forcing the unit to run longer and hotter.

• Water-Cooled: These require a more rigorous Services schedule. Because they use an open water loop, you must implement a strict water treatment program to prevent scale buildup, corrosion, and biological growth like Legionella. You’ll also need to descale the heat exchanger tubes periodically to maintain efficiency.

Conclusion

Choosing the right cooling system isn't a "one-size-fits-all" scenario. It requires a balanced look at your building's specific needs and your sustainability goals. Whether you're looking for the high-efficiency, long-term performance of a water-cooled plant or the simplified, water-free convenience of an air-cooled unit, we can help you navigate the technical details.

At Whitescarver Engineering Co., we’ve spent over 75 years helping Virginia businesses find the perfect Refrigeration and HVAC solutions. From initial engineering to long-term maintenance, we pride ourselves on technical excellence and reliable service.

If you're ready to evaluate the best chiller for your facility, reach out to our team in Roanoke today for a comprehensive consultation. We’ll help you evaluate the technical requirements and ensure your building stays cool for decades to come.
